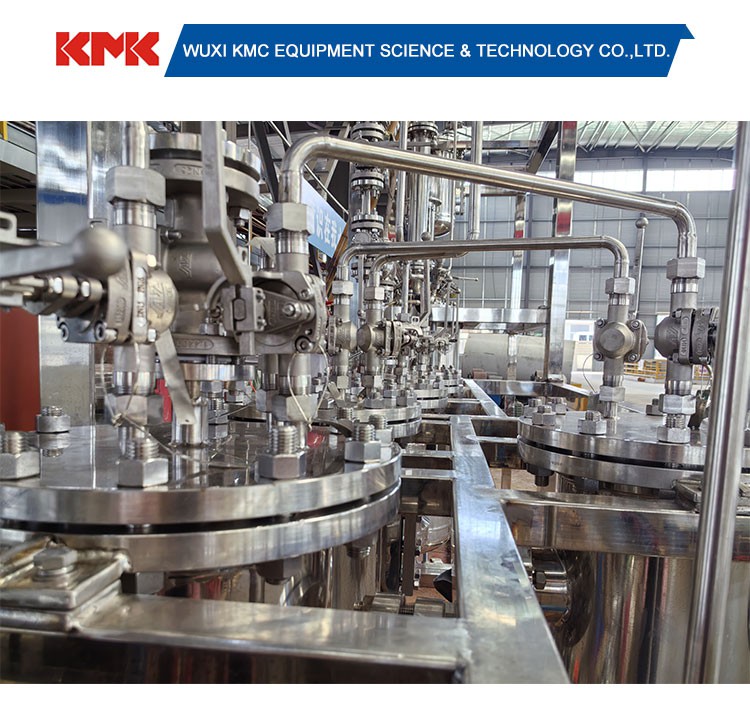

Distillation Separation Device

Distillation Separation Device is a key device that separates mixtures based on boiling point differences. Simple distillation equipment is mainly composed of a distillation tower, a reboiler, a condenser, a feed tank, and a pump. The plates or fillers in the distillation tower promote full contact between gas and liquid; the reboiler heats the liquid to vaporize it, providing rising vapor for distillation; the condenser cools and liquefies the vapor at the top of the tower.

1. Heating and evaporation: The mixed liquid to be separated is sent into the distillation equipment and heated to boiling point in the reboiler, so that the low-boiling-point components are vaporized first, forming vapor rising.
2. Gas-liquid mass transfer: The vapor rises in the distillation tower and fully contacts the descending liquid on the tower plate or filler surface to achieve heat and mass transfer, and the high-boiling-point components are partially condensed, and the low-boiling-point components are further vaporized.
3. Condensation and collection: The vapor at the top of the tower enters the condenser, is cooled and liquefied, and is collected as distillate; the unvaporized high-boiling-point components flow out from the bottom of the tower to complete the separation.

1. High-purity separation: The number of theoretical plates can reach 100+, and the separation purity is ≥99.9%.
2. Energy-saving design: Thermal coupling technology reduces energy consumption by 30%, and MVR heat pump integration is optional.
3. Corrosion-resistant structure: The material can be selected from 316L/titanium/Hastelloy, resistant to acid, alkali and organic solvents.
4. Intelligent control: The DCS system adjusts the reflux ratio, temperature and pressure in real time.
5. Modular assembly: The tower section is flange-connected for easy transportation and installation.

Tower tray: high-efficiency float valve/oblique hole tray, mass transfer efficiency increased by 20%.
Packing: structured packing (Mellapak/Sulzer) or random packing.
Reboiler: thermal siphon/forced circulation, heat source can be steam/thermal oil.
Condenser: shell and tube/plate, supports full condensation/partial condensation process.

ASME BPVC Section VIII (pressure vessel standard)
PED 2014/68/EU (EU certification)
GB/T 150 (Chinese pressure vessel standard)
ATEX (explosion-proof option)
