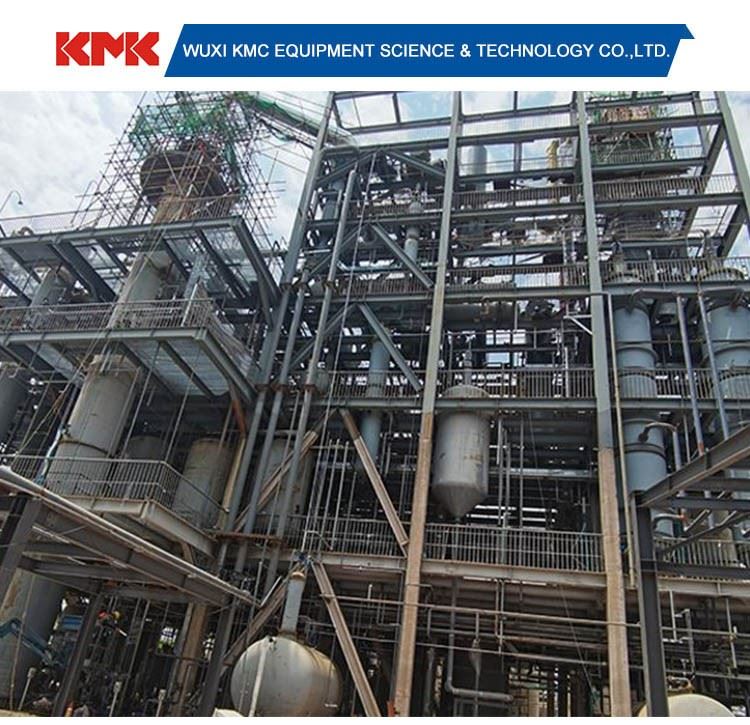

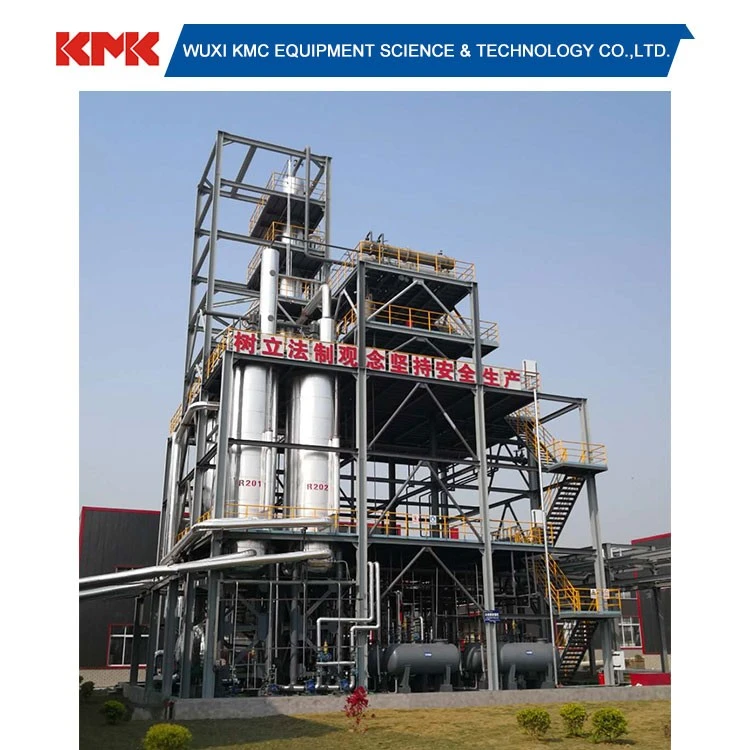

Used Mineral Oil Regeneration Unit
Description
Technical Parameters
Used Mineral Oil Regeneration Unit is an advanced and integrated system designed for the efficient recycling and regeneration of various used mineral oils, including lubricating oil, hydraulic oil, transformer oil, turbine oil, and gear oil. Through a multi-stage purification and regeneration process-such as dehydration, degassing, precision filtration, adsorption, and vacuum treatment-the unit effectively removes water, solid impurities, acidic components, oxidation products, and sludge, restoring the oil's physical and chemical properties close to that of new base oil.
Products Features
High regeneration efficiency: Significantly improves oil cleanliness, color, viscosity, and insulation performance
Wide oil adaptability: ASME "U" Stamped Used Mineral Oil Regeneration Units are suitable for multiple types of mineral oils with different contamination levels
Energy-saving & environmentally friendly: Reduces waste oil disposal, lowers carbon emissions, and supports circular economy
Stable and automated operation: PLC control system ensures safe, continuous, and user-friendly operation
Cost-effective solution: Extends oil service life, reduces new oil consumption, and lowers operating costs
technical parameters
Processing Capacity: 20 – 300 tons per day (customizable)
Recovery Rate: ≥ 90% of incoming waste oil
Output Quality:
Regenerated base oil: meets ISO VG 32–VG 150 standards
Fuel oil: low sulfur, high calorific value
Key Contaminant Removal:
Water content: ≤ 0.05%
Particulates: ≤ 0.01%
Metals removal: ≥ 95%
Operating Temperature Range: 150°C – 350°C
Power Supply: 380V/50Hz (or as per customer requirement)
Utilities Consumption (approx. per ton of oil):
Electricity: 50 – 80 kWh
Fuel (for heating): 20 – 35 kg
Water: < 0.5 m³
Footprint: Compact design, 50 – 200 m² depending on capacity
Typical applications
Power industry: transformer oil and turbine oil regeneration
Petrochemical and manufacturing sectors: lubricating oil and hydraulic oil purification
Heavy industry: gear oil and quenching oil recycling
Waste oil recycling plants: hazardous waste mineral oil regeneration and reuse
ASME-Certified Used Engine Oil Recycling Machine and Plants for Sale
We are always at your service when you need
Our ASME "U" Stamped Used Engine Oil Recycling Machine and Plants offer an efficient and environmentally responsible solution for converting waste engine oil into reusable base oil. By integrating advanced processes such as dehydration, filtration, vacuum distillation, and adsorption, the system effectively removes water, impurities, heavy metals, acids, and oxidation by-products.
Used Engine Oil Recycling Machines and Plants help enterprises achieve sustainable waste oil management while delivering significant economic and environmental benefits.
