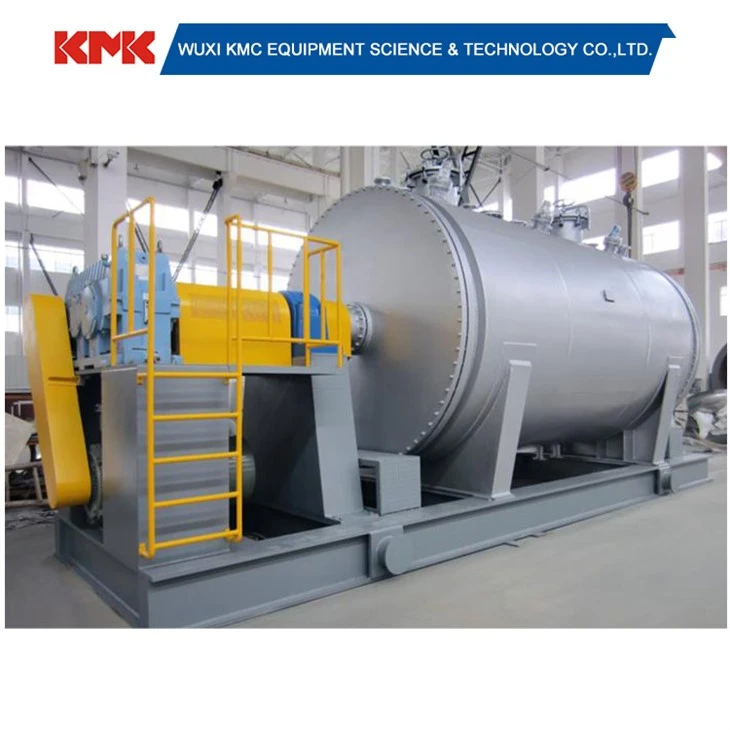

ZHG-II Series Vacuum Rake Dryer

Wet materials are put into jacketed and heated containers in batches. Under vacuum, a stirrer with a plate is used to continuously stir fry the materials, conduct heating and evaporation, and move them inside the container to form a circulating flow. After the water or solvent evaporates or is recovered, it is discharged through a vacuum pump

Send Inquiry

Description

Technical Parameters

Introduction

Principle:
This drying equipment is a novel horizontal intermittent vacuum drying equipment improved on the basis of absorbing domestic and foreign rake drying technology. Wet materials are evaporated through conduction, and a scraper stirrer is equipped to continuously remove materials on the hot surface. The material is pushed inside the container to form a circulating flow, and the water is evaporated and then pumped out by a vacuum pump.
Features:
The company adopts a six point one line machining and assembly process, accompanied by three sets of bearing structure designs, to improve concentricity and thermal expansion regulation;
The improved product has significantly improved its concentricity, sealing, strength, effectiveness, and lifespan;
◆ Different mixing blade structures are used for different materials, and heating or cooling designs can be selected within the shaft;
The company can independently design and produce large vacuum rake dryers within 60m3;
According to the material situation, batch or continuous operation can be designed under vacuum state;
◆ Positive and reverse operations can be designed based on material characteristics to forcibly squeeze and disperse block materials;
Flexible starting methods can be designed based on material characteristics and user requirements;
Different sealing fillers or shaft sleeve forms can be selected according to user requirements.
Sampling valves, vibrators, explosion-proof, heat sources, discharge valves, etc. can be selected according to user requirements.
