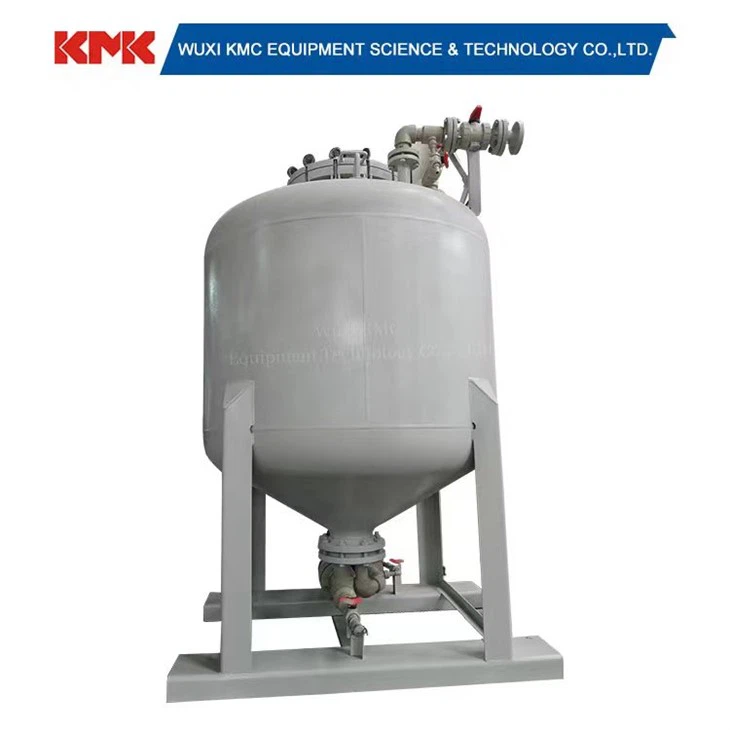

Activated Carbon Filter

Activated Carbon Filter

The utility model relates to a filter of a tank body, which is usually made of stainless steel or glass fiber reinforced plastic and filled with activated carbon, and is used for filtering the free matter, microorganisms and some heavy metal ions in the water, and can effectively reduce the color of the water.
Weight:Depends on capacity
Size:Depends on capacity
Power:0.5~5.5, 110V/220V/380V
Warranty:1 Year
Productivity:1000L/Hour
Weight (KG):1000 kg
Application:Filtration
Product name:water filter
Capacity:250L~10000L
Certification:CE ISO
Type:Water Filter Parts
Usage:Water Treament
Function:Water Treatment Systerm
Keywords:RO Water Filtration
Send Inquiry

Description

Technical Parameters

Introduction

Activated carbon filter is a kind of common water treatment equipment, as the pre-treatment of desalting water treatment system, it can absorb the residual chlorine that can not be removed from the pre-filtration, which can effectively guarantee the service life of the post-treatment equipment and improve the quality of the effluent, prevent contamination, especially from free residual chlorine poisoning of post reverse osmosis membranes, Ion-exchange resin, etc. . At the same time, it also adsorbs the small molecule organic matter and other pollutants from the former stage, which can remove the odor, colloid, pigment and heavy metal ions obviously, and reduce COD. The SDI value of RO influent can be further reduced to ensure SDI & LT; 5, TOC & LT; 2.0 ppm.

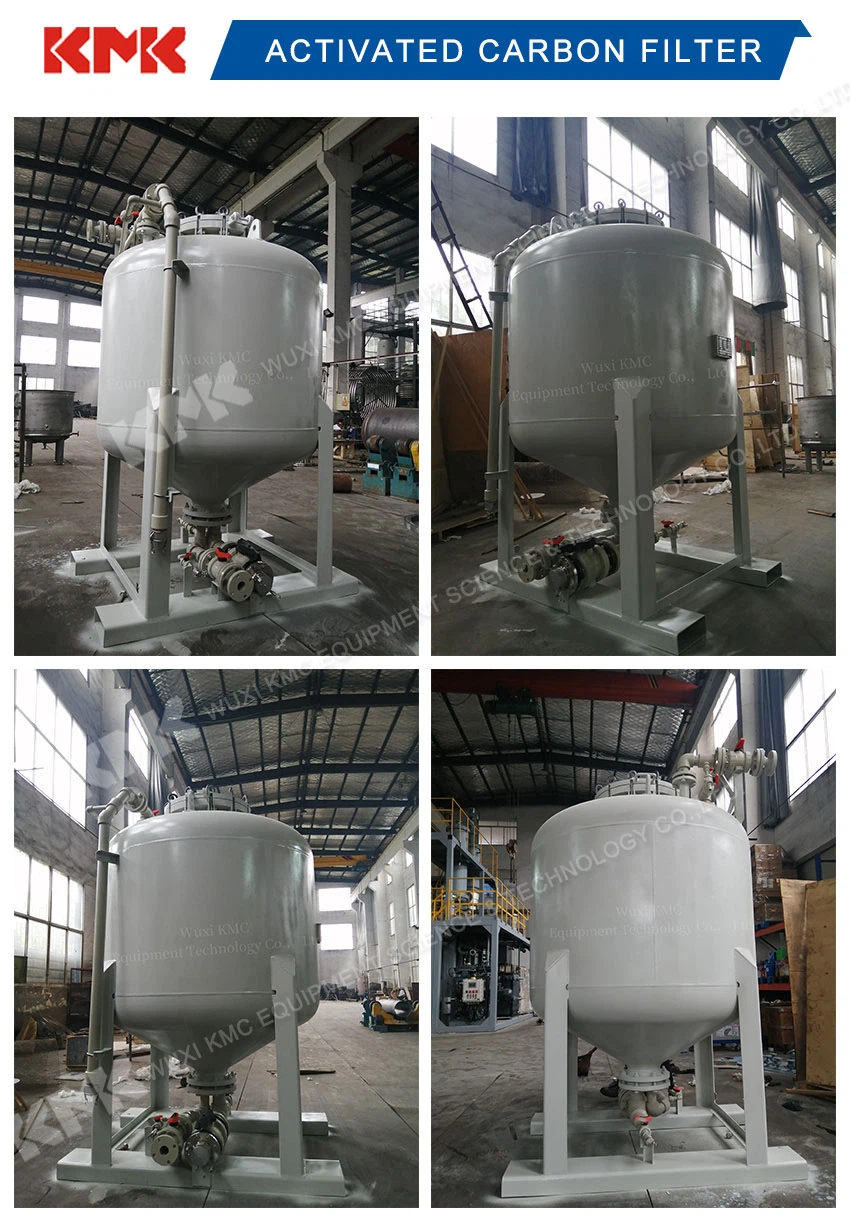

Activated-Carbon-Filter



Product Details

Model

Tank

Diameter

Total

Height

Inlet/Outlet

Diameter

Capacity

Sand

Weight

Activated

Carbon



(mm)

(mm)

(mm)

(m³/h)

(ton)

(ton)

YL-MF-500

500

2350

DN32

2

0.39

0.11

YL-MF-600

600

2380

DN32

3

0.56

0.16

YL-MF-700

700

2400

DN40

4

0.76

0.22

YL-MF-800

800

2400

DN40

5

1

0.3

YL-MF-900

900

2500

DN50

6

1.3

0.36

YL-MF-1000

1000

2600

DN50

8

1.6

0.45

YL-MF-1200

1200

2700

DN65

11

2.3

0.65

YL-MF-1400

1400

2800

DN65

15

3

0.86

YL-MF-1500

1500

2850

DN65

18

3.5

1

YL-MF-1600

1600

2900

DN80

20

4

1.2

YL-MF-1800

1800

3000

DN80

25

5

1.5

YL-MF-2000

2000

3100

DN100

30

6

1.8

YL-MF-2200

2200

3180

DN100

38

7.5

2.2

YL-MF-2400

2400

3330

DN100

45

9

2.5

YL-MF-2500

2500

3380

DN100

50

9.7

2.8

YL-MF-2600

2600

3430

DN125

55

10

3

YL-MF-2800

2800

3530

DN125

60

12.5

3.5

YL-MF-3000

3000

3630

DN125

70-80

14

4

YL-MF-3200

3200

3730

DN150

80-100

14

4.5



Features

We are a research and development production and wholesale sales integration of professional companies, dedicated to provide customers with one-stop procurement services: evaporators, reactors, filters, mixing devices, cooling Tower series of sewage treatment accessories professional production and processing company, Welcome to inquire, visit the guide! [ shopping notes ] fast price changes + hollow goods account for a larger volume, Price and logistics options for online customer service.

1、Factory direct sale

2、The inventory is enough

3、Processing customized

4、Perfect Survice



Part Of Cooperation Case

Part Of Cooperation Case
