Stainless Steel 316 Spiral Heat Exchanger

Spiral plate heat exchangers are made of two thin metal plates welded to a dividing baffle (the short plate in the center of the picture) and rolled into a spiral. Two thin metal plates form two spiral channels in the device, and the top and bottom are respectively welded with cover plates or heads. When exchanging heat, the cold and hot fluids enter two channels respectively, and flow strictly countercurrently in the device.

Send Inquiry

Description

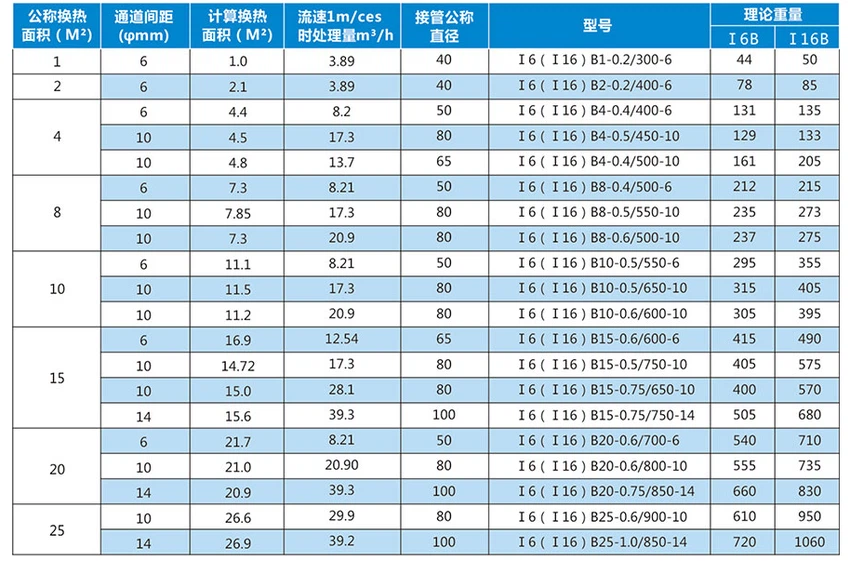

Technical Parameters

Introduction

Stainless Steel 316 Spiral Heat Exchangers are a type of heat exchanger that have come to be widely used in various industries. They are made of high-quality 316 stainless steel that has excellent corrosion resistance, durability, and strength. The design of the spiral heat exchanger features two coils, one inside the other, which are connected by a spiral channel. The primary fluid flows through the outer coil, while the secondary fluid flows through the inner coil. As the fluids flow through the spiral channels, heat is transferred from the primary fluid to the secondary fluid, making the process of heat exchange highly efficient.

Application

These heat exchangers are used in a wide range of applications that require a high level of heat transfer efficiency. For instance, they are commonly used in food and beverage processing, chemical processing, pulp and paper manufacturing, and various other industrial processes. They are particularly useful when dealing with high viscous fluids and those that are prone to fouling. The spiral design helps prevent fouling by continuously rotating the fluid through the spiral channels, ensuring all parts of the heat exchanger are cleaned.

One of the primary advantages of the Stainless Steel 316 Spiral Heat Exchanger is its high heat transfer efficiency. Due to the spiral design, the fluids are in constant contact, allowing for a more efficient transfer of heat. Additionally, the design allows for a higher heat transfer area per unit of volume than other types of heat exchangers. As a result, less space is required for the heat exchanger, making them more compact and cost-effective.

Advantage:

Another advantage is the durability and corrosion resistance of the 316 stainless steel material. The material is highly resistant to corrosion, which makes it ideal for use in processes involving corrosive fluids or high temperatures. These heat exchangers are also easy to clean and maintain, making them a popular choice among operators.

Overall, the Stainless Steel 316 Spiral Heat Exchanger is an excellent choice for those who need an efficient and durable heat transfer solution. Its spiral design allows for a high level of heat transfer efficiency, while its 316 stainless steel material ensures corrosion resistance and durability. With its versatility and cost-effectiveness, it is no wonder that these heat exchangers have become a popular choice for use in various industries.

Product Details

product-850-1123
